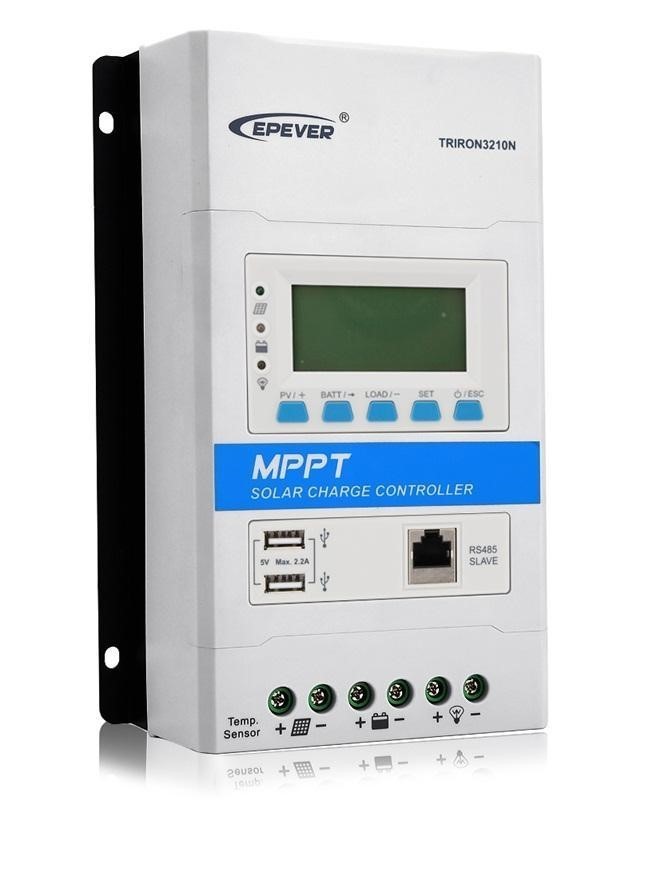

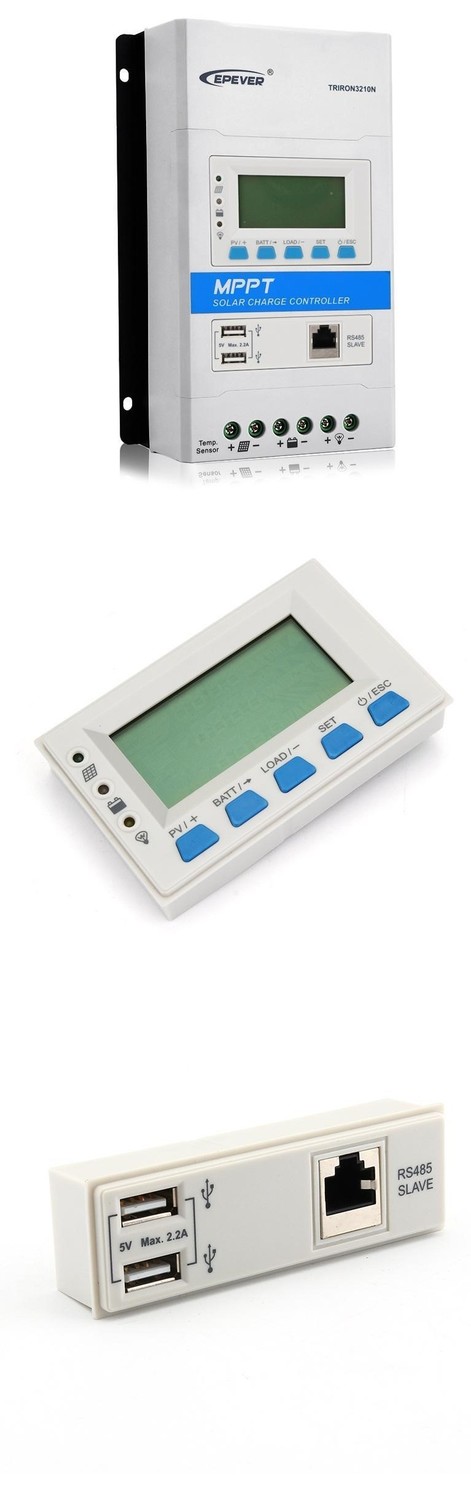

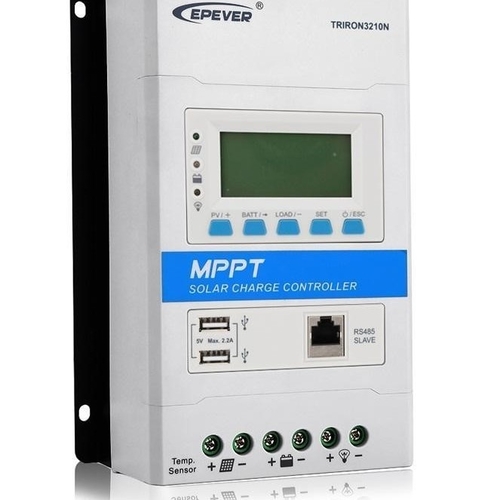

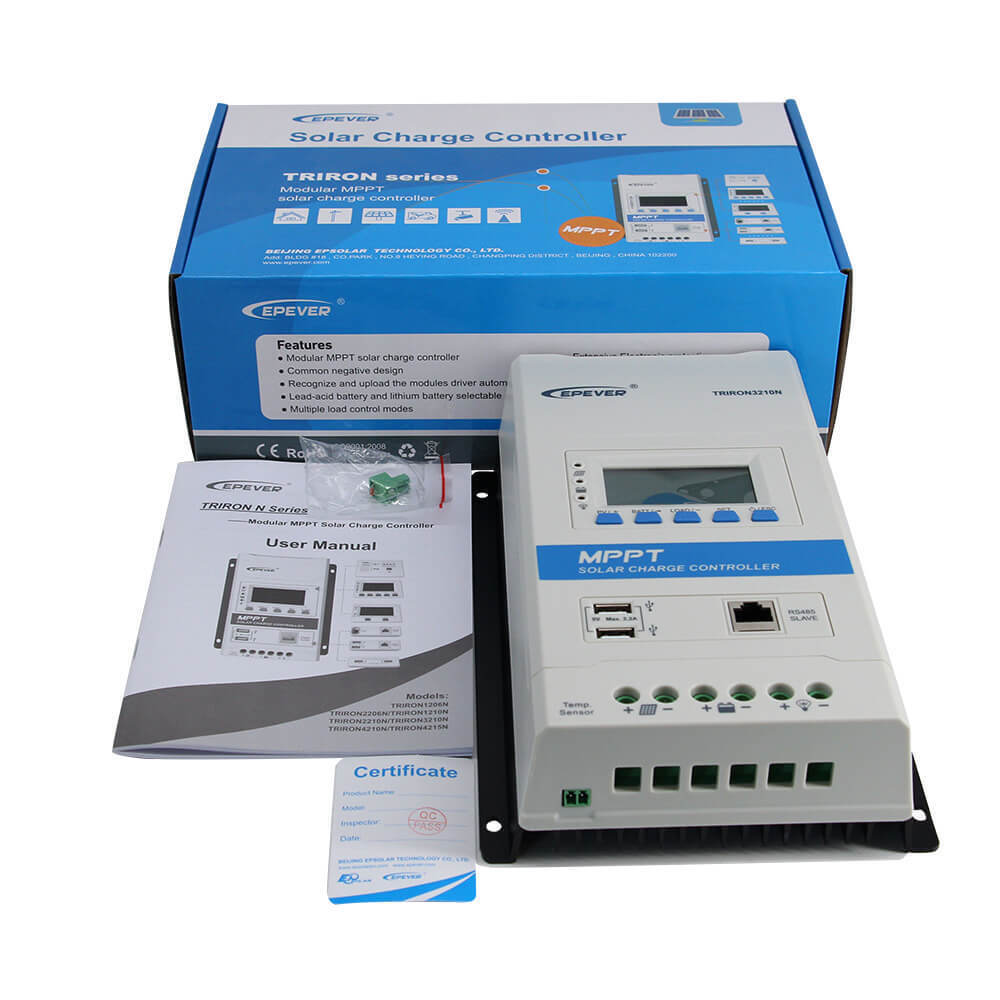

EPEVER 40A 12/24V MPPT TRIRON Controller
EPEVER 40A 12/24V TRIRON Maximum Power Point Tracking Solar Charge Controller
TRIRON can minimize the maximum power point loss rate and track the maximum power point of the PV array to obtain the maximum energy from solar modules under any conditions and increase the ratio of energy utilization in the solar system up to 30% compared with a PWM charging method.
The controller has an input voltage up to 100V enabling the unit to work with both On and Off Grid Solar panels.
Features
Advanced MPPT Technology
High Tracking Efficiency No Less Than 99.5%
Peak conversion efficiency of 98%
Dual USB terminal
Terminal for optional Remote Meter

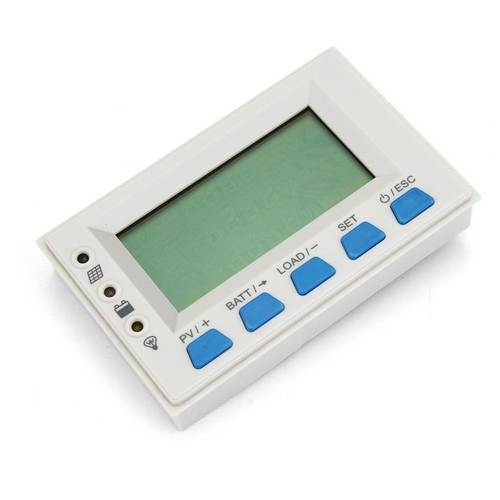

Multi Function LCD Display
Works with Gel, Sealed & Flooded batteries
Automatic recognition of battery voltage as 12v or 24v
Temperature sensor for battery charging compensation
Protective Functions
PV Array Short Circuit
PV Overvoltage
PV Overcurrent
Load Overload
Load Short Circuit
PV Reverse Polarity
Battery Reverse Polarity
1 x Load Output for 12v appliance
RJ45 Communication Port for Optional Remote Meter
Electrical Specifications
Rated charging current: 40A
Rated charging power 520W at 12V
Rated charging power 1040W at 24V
Maximum Solar panel input voltage: 100V
Maximum PV input power: 780W for 12v batteries
Maximum PV input power: 1560W for 24v batteries

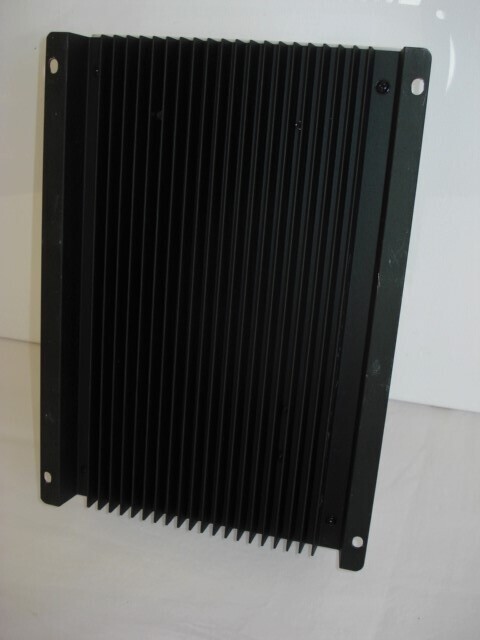

Mechanical Specifications
Length: 257mm
Width: 183mm
Depth: 67mm
Terminals: Cable up to 16mm2
