125W Dual Battery Charger
125W Dual Battery Solar Charger Kit
When you would like to charge two separately wired 12V batteries simultaneously the Dual Battery Solar Charger provides this facility.
The long-lasting, high-efficiency Monocrystalline solar cells are encapsulated in a strong aluminium frame to give many years of consistent, reliable free energy. The solar panel is a waterproof design enabling use in all weather conditions.
Kit Includes
125W Solar Panel with Monocrystalline Solar Cells
10A Dual Battery Solar Charge Controller

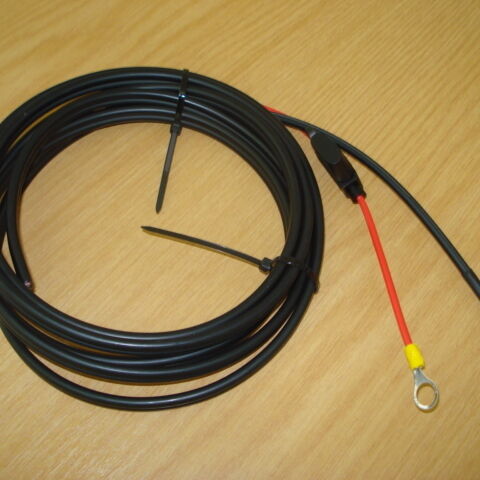

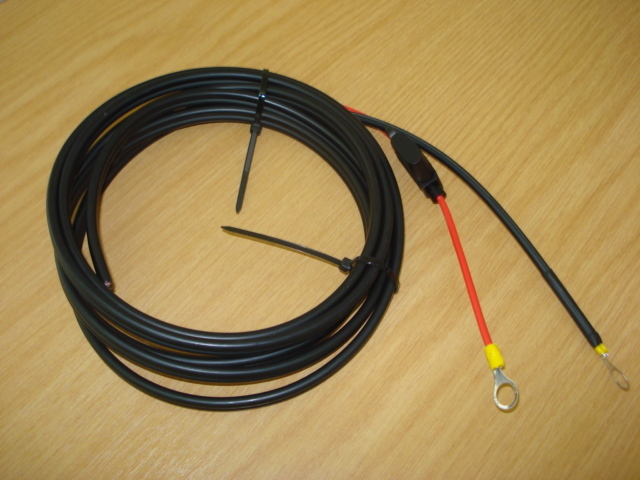

2 x 3 Metre Controller to Battery Leads with Inline Fuse

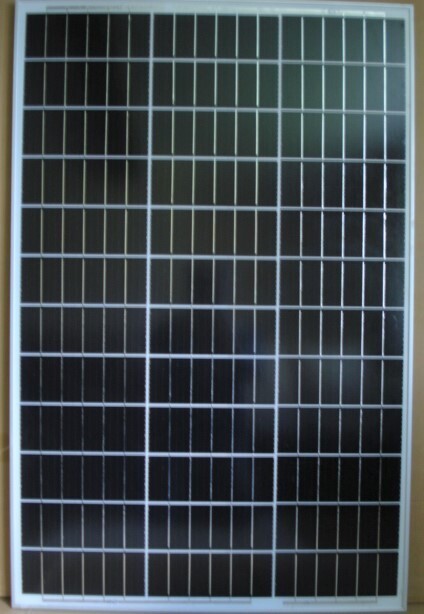

Solar Panel Specification
Maximum Power: 125 Watts
Maximum Voltage: 18.00 Volts
Maximum Current: 6.94 Amps
Open Circuit Voltage: 22.50 Volts
Short Circuit Current: 7.50 Amps
Dimensions: 1030 x 680 x 30mm
Approximate Weight: 10Kgs
Product Features
High module conversion efficiency
Anodized aluminium frame for corrosion resistance
Highly transparent, low iron tempered glass and anti-reflective coating
Excellent performance under low light conditions
Warranty
90% of rated power in 10 years
80% of rated power in 25 years
Workmanship & Materials 12 Years

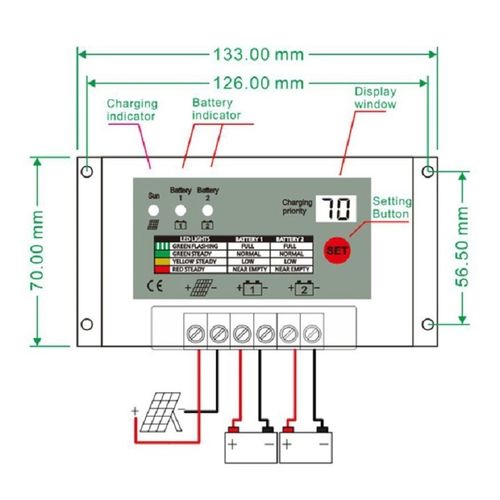

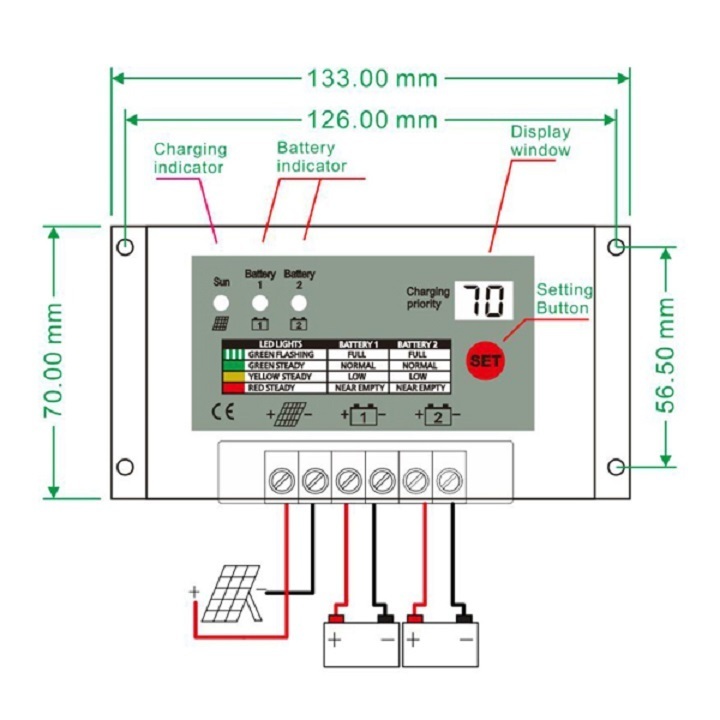

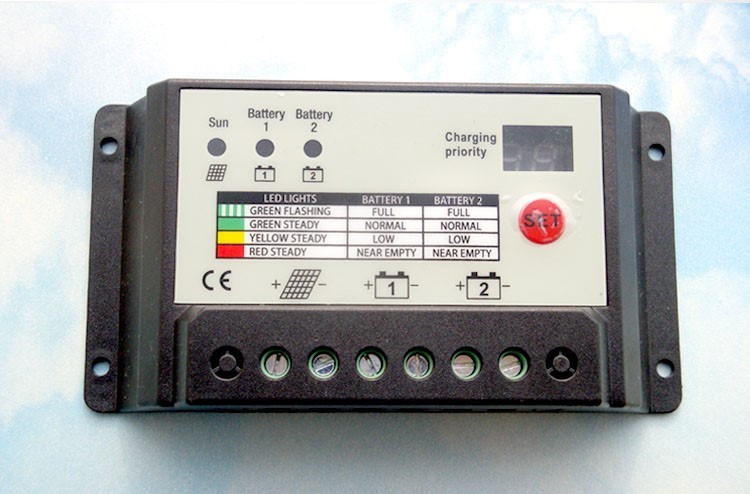

Solar Charge Controller
Dual Battery 10 Amp 12/24V Solar Charge Controller designed to charge two separately wired 12v batteries simultaneously making this very useful when you have a starter and leisure battery as this avoids running two separate charging systems
Features
Microcontroller digital accuracy
Pulse Width Modulation (PWM) Charge mode
State of charge (SOC)
Temperature compensation
Automatic detection of the voltage
External temperature sensor
Battery types: Gel, Sealed & AGM
Electrical Parameters
System voltage: 12/24V with automatic recognition
Maximum input watts: 130W
Maximum input Volts: 41V for 12V system
Nominal battery current: 10A
Self consumption: ≤6mA
Protective functions
Over charging
Over discharging
Overload protection
Reverse polarity protection
